Txav koj lub iav nrog lub zog ntsuab: Runhorse TEV Machinery Carrier
Tsis txhob nkim roj rau cov tsheb loj loj loj rau koj cov toj roob hauv pes txhua hnub lossis - txoj kev tsim kho me me. CovRunhorse TEVyog tus kws tshaj lijEEC L7e-CU tau ntawv pov thawjworkhorse tsim los nqa koj cov khoom siv tseem ceeb tshaj plaws -los ntawm xoom- tig tshuab txiav mus rau mini-excavators- nrog xoom emissions thiab kev ua haujlwm tsis sib xws.
Vim li cas Landscapers & Contractors Xaiv TEV:
🎮 Precision Maneuverability nrog EPS
Kev taug kev hauv vaj nqaim los yog cov chaw tsim kho uas muaj neeg coob heev yog qhov nyuaj. TxujHluav Taws Xob Steering (EPS)xyuas kom tag nrho cov tswj txawm tias thaum lub tsheb muaj tag nrho cov khoom hnyav thiab cov cuab yeej siv.
🏗️ Loj 2.1m Ntau Qhov Chaw Thauj Khoom
Cov2080 * 1280 * 260 hlidropside txaj muab lub tiaj tiaj, ruaj khov platform. Lub 3-sab qhib tsim ua rau kev thauj khoom hnyav ntawm ramps yooj yim dua puas tau, txuag koj pab neeg lub sijhawm thiab kev siv zog ntawm txhua qhov chaw ua haujlwm.
💪 Siab -Torque 14.8kW PMSM Lub cev muaj zog
Machinery hnyav. PebPermanent Magnet Synchronous Tsavmuab qhov siab qis - kawg torque yuav tsum txav mus650kg + loadsnce toj siab hauv nroog inclines thiab mus rau chaw thau khoom docks yam tsis muaj hesitation.
🛡️ Muaj - Qib Durability
Kev tsim kho thiab kev tsim kho vaj tse tsis zoo. CovABS Resin lub cevresists dents thiab khawb, thaum lubTxhua yam -Aluminium txajyog 100% xeb- pov thawj. Koj tuaj yeem ntxuav cov av nkos, nyom, thiab plua plav hauv feeb yam tsis muaj kev txhawj xeeb txog kev xeb.
TEV Perameter

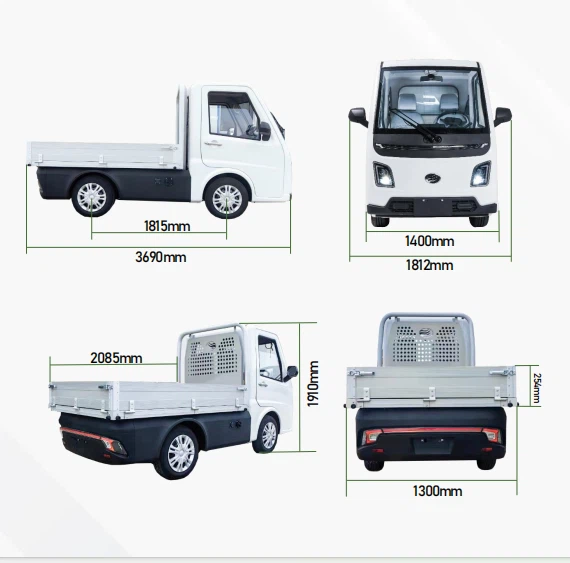

| Yam khoom | 65km/h Version | 80km/h Version |
| Loj: LWxH (mm) | 3690×1400×1910 | |
| Aluminium Cargo Hopper: LxWxH (mm) | 2085×1300×254 | |
| Cargo Box: LxWXH (mm) | 2100×1310×1280 | |
| Chasis clearance (mm) | 160 | |
| Whee Base (mm) | 1815 | |
| Rooj | 2 | |
| Steering | LHD / RHD (Yeem) | |
| Pem hauv ntej Trad (mm) | 1125 | |
| Tsheb kauj vab (mm) | 1170 | |
| Lub cev hnyav (Mthout roj teeb) (kg) | 595 | 595 |
| Loading peev (kg) | 650 | |
| Min.Tig Radius(m) | Tsawg dua lossis sib npaug rau 4.2 | |
| Lub cev muaj zog (KW) Permanent magnet synchronous lub cev muaj zog |
75 | 14.8 |
| Ceev (km / h) | 65 | 80 |
| Lub Sijhawm Acceleration | <15 | <15 |
| Roj teeb muaj peev xwm (KWh) | 20.6/272 | 20.6/27.2 |
| Ntau yam (km) | 190-220/240-270 | 170-200/220-250 |
| Tsis muaj -load braking nrug (m) | 7.5 | |
| Hom roj teeb | Lithium hlau phosphate roj teeb (LFPLiFeP04) | |
| Qhov System Voltage (v) | 89.6 | |
| Charge hom | Kev them nyiaj hauv tsev + AC chaw nres tsheb | |
| Charge Timeh) | 6-10 | 6.5-10 |
| Tsav Tsav Hom | Spur iav reducer tsav | |
| Tsheb Lub Cev Structure | Sib cais kev tsim kho | |
| Pem hauv ntej/Rear Suspension hom | Pem hauv ntej ywj siab ncua kev kawm ntawv / rear axkle hom | |
| Pem hauv ntej / rear nres hom | Disc brakes / ABS | |
| ABS tiv thaiv -lock braking system | √ | |
| Kev nce toj siab (%) | Tsawg dua los yog sib npaug li 20 | Tsawg dua los yog sib npaug li 25 |
| Hluav taws xob Steering Assist System (EPS) | √ | √ |
| Seat Bel Warning (Tus Tsav Tsheb Loj) | √ | √ |
| Central Control Xauv | √ | √ |
| Rov qab lub koob yees duab | √ | |
| Digital Rearview Daim iav | xaiv tau | √ |
| Hais lus | ||
| ectric vauum auxiiary braking system l |
√ | |
| Ntse LCD zaub | √ | |
| Headlights, Hnub teeb, rear taillights | √ | 1 |
| Hwj chim Kho Rearview Mrror | ||
| Cua txias | ||
| Hluav taws xob Wiper | ||
| Nres zog rov qab | ||
| EPSABS | √ | |
| Qhov rai | Hluav taws xob tswj | |
| Lub log | 175/65R14 | |
| Ntaus Ntaus | Auminum cargo hopper, Aluminium cargo lub thawv txias saw box, khib nyiab hloov thoob txoj kev tu thiab customization |
|
| EU Homologation | EECQL7e-CU) | |
Tsheb Customization
Ntau tus qauv muaj nyob rau kom tau raws li cov kev xav tau sib txawv
Rhiav Show
Shandong Runhorse Electric Vehicles Co., Ltd yog ib lub tuam txhab tshwj xeeb hauv kev tsim cov tsheb hluav taws xob qis. Peb lub tuam txhab npog thaj tsam ntawm 270,000m, tus qauv cog npog thaj tsam ntawm 150,000 m². Muaj ntau tshaj 700 tus neeg ua haujlwm, suav nrog 50 tus kws tshaj lij engineers. Tag nrho cov khoom tau txais kev pom zoo EEC COC daim ntawv pov thawj. Peb lub tuam txhab tau tsim nyob rau xyoo 2001, nrog cov cuab yeej tsim khoom siab heev. Tam sim no peb muaj 4 kab ntau lawm rau hnyav- lub luag haujlwm maus taus, 2 cathodic electrophoresis txheej kab, 2 maus taus
Kev tshuaj xyuas kab rau txhua tus qauv, 2 tsis siv neeg xim kab, 3 lub cev vuam kab, 2 thav duab ntau lawm kab, thiab ntau yam khoom siv kuaj.
Txhawm rau txhim kho lub peev xwm ntau lawm, tau nqis peev ntau los tsim plaub cov kab ntau lawm niaj hnub, xws li cov ntawv hlau xovxwm, cov txheej txheem txheej txheej, cov kab vuam thiab cov kab sib dhos. Muaj ntau tshaj 100,000 ntawm ntau hom tau muag rau ntau tshaj 30 lub teb chaws xws li Europe, Tebchaws Asmeskas, Central Asia, Southeast Asia thiab lwm qhov hauv ntiaj teb, tau txais kev qhuas zoo los ntawm cov neeg siv khoom thoob ntiaj teb.
Chassis Rhiav
Sib dhos kab
Sib dhos kab
Lub tsev khaws khoom
FAQ
Q: Lub txaj puas tuaj yeem tuav qhov hnyav ntawm mini-excavator?
A: Yog. Lub TEV nta ib qho kev lag luam muaj zog ntxiv - qib chassis nrog cov ntawv pov thawj 650kg payload. Tsuav koj lub tshuab mini- poob rau hauv qhov hnyav txwv no, TEV yog tsim los thauj nws kom nyab xeeb.
Q: Puas yog lub txaj cargo txaj tshem tau?
A: Yog lawm. Lub txaj 3-sab dropside tuaj yeem txo qis lossis tshem tawm tag nrho, tso cai rau TEV ua haujlwm raws li lub txaj txaj rau cov cuab yeej loj lossis cov khoom palletized.
Peb tuaj yeem txhawb nqa dab tsi
Shandong Runhorse Electric Tsheb Co., Ltd.
24teev
online
2xyoo
warranty rau tag nrho lub tsheb thiab lead acid roj teeb
3xyoo
warranty rau lithium roj teeb
Npaj technical man rau kev cob qhia rau tus neeg muag khoom
