Lub tsheb ceev ceev rau cov neeg caij tsheb 3-wheeler 4-wheeler 3KW
Parameter ntawv version:
|
Khoom npe |
J2 |
|
Tag Nrho Qhov Loj (mm) |
2390*1200*1700 |
|
Max ceev (km / h) |
45 |
|
Qhov siab tshaj plaws (km) |
115 |
|
Peev xwm (tus neeg) |
1-3 |
|
Loading peev (kg) |
190 |
|
Steering hom |
1 nruab nrab kauj |
|
AC Tsav |
3 KW/4 KW |
|
Lithium roj teeb |
105Ah, LiFePo4 Roj teeb nrog BMS System |
|
Lub sijhawm them nyiaj |
3 teev (220v lossis 110v) |
|
Nres System |
pem hauv ntej disc, rear nruas, |
|
Lub log |
Pem hauv ntej / nram qab 135 / 70-R12 |
|
Hluav taws xob rhaub |
60V 800W |
|
Lwm tus |
Plaub lub log, 2 tawv rooj zaum nrog 3- taw tes siv, Aluminium Alloy Hub, Mp5 ntxiv rau Lub Koob Yees Duab Rov Qab, Central lock thiab Ib lub pob pib, Hluav taws xob qhov rooj thiab qhov rais |
|
Khoom npe |
J1 |
|
Tag Nrho Qhov Loj (mm) |
2160*1150*1680 |
|
Max ceev (km / h) |
45 |
|
Qhov siab tshaj plaws (km) |
130 |
|
Peev xwm (tus neeg) |
1-3 |
|
Loading peev (kg) |
150 |
|
Steering hom |
1 handlebar |
|
AC Tsav |
3 KW |
|
Lithium roj teeb |
105Ah, LiFePo4 Roj teeb nrog BMS System |
|
Lub sijhawm them nyiaj |
3 teev (220v lossis 110v) |
|
Nres System |
pem hauv ntej disc, rear disc, |
|
Lub log |
Pem hauv ntej 120 / 70-R12, rear 135 / 70-R12 |
|
Hluav taws xob rhaub |
60V 800W |
|
Lwm tus |
peb lub log, 2 tawv rooj zaum nrog 3- taw tes siv, Aluminium Alloy Hub, Mp5 ntxiv rau Lub Koob Yees Duab Rov Qab, Central lock thiab Ib lub pob pib, Hluav taws xob qhov rooj thiab qhov rais |
Nta, zoo thiab siv lub scene
(1) J1 / J2 Lub Tsheb Hluav Taws Xob rau cov neeg caij tsheb Nrog 105Ah LiFePo4 Roj teeb nrog BMS, tab sis tsis yog ternary lithium roj teeb, peb cov khoom zoo dua qub thiab ruaj khov zoo dua.
(2) Kev xaiv cua txias

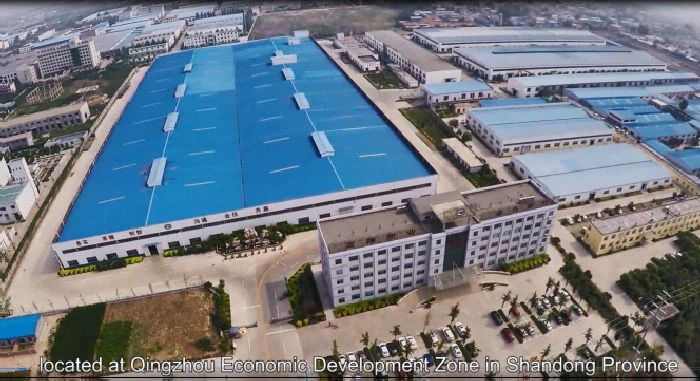

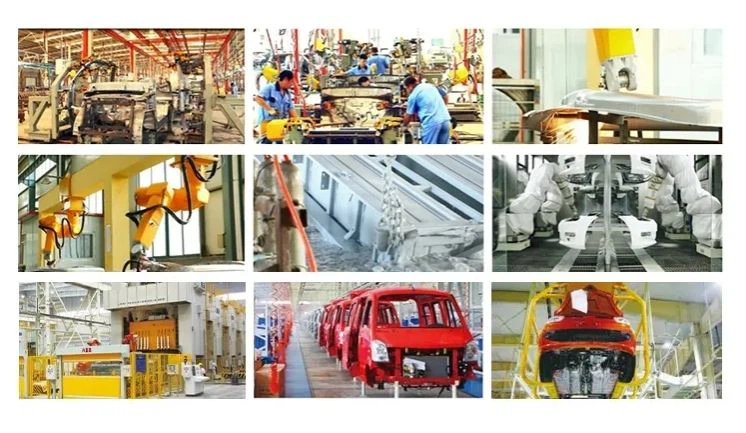

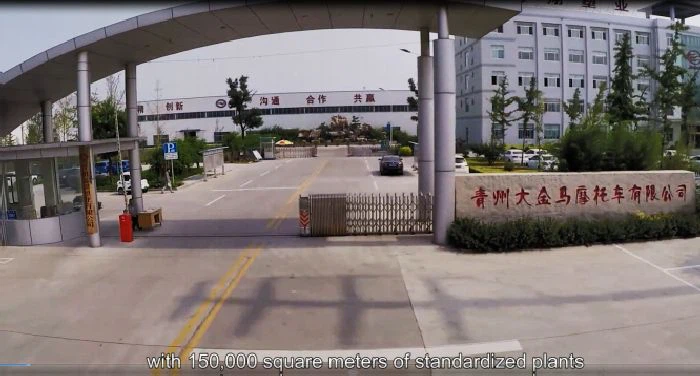

(3) Peb muaj peb lub Hoobkas hauv Weifang Qingzhou EDZ. Peb muaj 4 cov kab ntau lawm rau cov maus taus hnyav, 2 cathodic electrophoresis txheej kab, 2 maus taus tshuaj kab rau txhua tus qauv, 2 tsis siv neeg xim kab, 3 lub cev vuam kab, 2 thav duab ntau lawm kab, thiab ntau yam khoom siv.

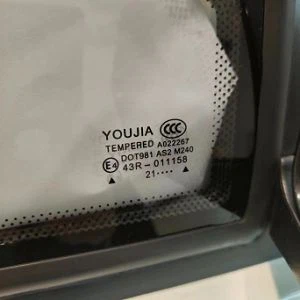

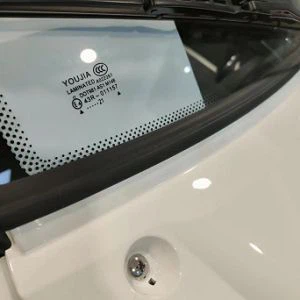

(4) Pem hauv ntej / Sab Cuab Yeej
Nrog CCC / E-kos / DOT (AS1 / AS2) tau ntawv pov thawj tempered thiab laminated iav, los txhim kho qhov pom tseeb.
(5) Nres System
J1 Peb lub log: Pem hauv ntej-disc thiab rear-disc dual circuit hydraulic nres.
J2 Plaub lub log: Pem hauv ntej-disc thiab rear-nruas dual circuit hydraulic nres.
(6) Peb feem ntau koom nrog kev nthuav qhia ob qho tib si hauv tsev thiab txawv teb chaws. Peb kuj zoo siab tos txais peb cov neeg sawv cev koom nrog hauv kev nthuav qhia thoob ntiaj teb nrog peb cov tsheb hluav taws xob.

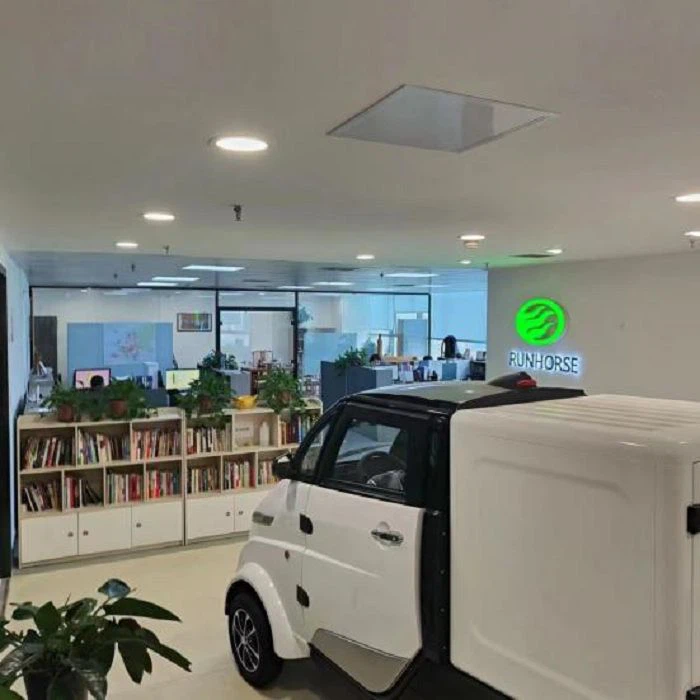

(7) Zoo siab txais tos tuaj xyuas peb lub Hoobkas thiab Weifang Trading Office nyob rau yav tom ntej.
Ntim thiab thauj:
Peb yuav muab txoj kev ntim khoom zoo dua nrog cov hlau thav duab lossis cov thawv ntoo, los tiv thaiv thiab ceev koj lub tsheb mini hauv lub thawv.
Cim npe nrov: Tuam Tshoj qis ceev tsheb rau cov neeg caij tsheb, Tuam Tshoj qis ceev tsheb rau cov neeg caij tsheb manufacturers, lwm tus neeg, Hoobkas
